FLOW MEASUREMENT

Category:

Flow measurement systems for all liquids, gases and steam. Suitable for industrial process control, consumption and energy management applications.

  • Paddle Wheel Flowmeters
  • Oval Gear Flowmeters
  • Turbine Flowmeters
  • Electromagnetic Flowmeters
  • Vortex Flowmeters
  • Ultrasonic Flowmeters
  • Coriolis Flowmeters
  • Thermal Mass and Calorimetric Flowmeters
  • Surface Acoustic Wave (SAW) Flowmeters
  • Mechatronic Flowmeters
  • Displays, Recorders, Controllers, and computation Units for flow metering applications
CONTACT US

PADDLE WHEEL FLOWMETERS

  • Ideal for neutral, aggressive and solid-free liquids depending on the version.
  • Nominal diameters up to DN2500.
  • Simpler installation thanks to fitting system.
  • Available as inline or insertion version
  • Low flow versions also available

OVAL GEAR FLOWMETERS

  • For highly viscous fluids like honey, glue or oil.
  • There are versions for low flow rate application
  • Electronics available for indication, monitoring, transmitting, On/Off control and batch control
  • High accuracy
  • Programmable outputs: one or two transistor or relay output(s) and single or dual 4-20 mA current output(s)
  • Automatic-calibration: TEACH-IN, simulation of outputs signals provided without the need for real flow
  • Certified Ex hazardous area versions in all sizes.
  • Quadrature pulse output option & bi-directional flow.
  • No need for flow conditioning (straight pipe run etc.)

TURBINE FLOWMETERS

  • Up to DN500
  • High accuracy & repeatability
  • Low cost of ownership, wide flow range
  • Rugged & compact design
  • Certified Exd & I.S. hazardous area versions
  • Quadrature pulse output option
  • Integral or remote pre-amplifiers & flow instruments
  • ±0.15% custody transfer models available

ELECTROMAGNETIC FLOWMETERS

  • Insertion Versions
  • Inline Versions
  • Versions for water and waste water applications
  • Versions for hygienic applications
  • Options for compact or remote electronic transmitter
  • Versions for low flow, batching, dosing and filling applications
  • Versions for high temperature applications

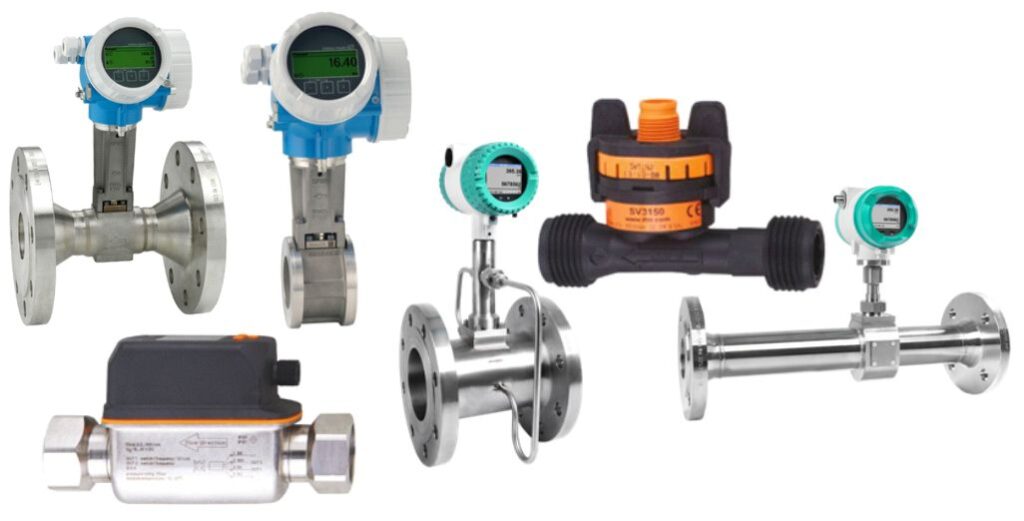

VORTEX FLOWMETERS

  • Very suitable for compressed air and gas applications
  • Versions for high temperature and steam applications
  • Options for compact or remote electronic
  • Versions with integrated temperature and pressure sensors
  • Options with integrated flow computer
  • Versions with integrated ultrasonic flow sensor for technical and mixed gases applications

ULTRASONIC FLOWMETERS

  • Suitable for a wide variety of liquids and gases
  • Inline and clamp-on versions
  • Options with integrated temperature sensor
  • Versions for energy consumption measurement
  • Versions for concentration measurement
  • Versions for low flow measurement
  • Versions with integrated vortex flow sensor for technical and mixed gases applications

CORIOLIS FLOWMETERS

  • Suitable for various liquids and gases
  • Versions for life science applications
  • Versions for low flow, dosing, batching and filling applications
  • Versions for chemical applications
  • Versions for density and viscosity measurement
  • Compact and remote electronic versions
  • Burkert Mass Flow Controllers (MFC) and Mass Flow Meters (MFM) for liquids

THERMAL MASS AND CALORIMETRIC FLOWMETERS

  • Reliable flow measurement in liquid and gases
  • Versions for measurement of flow, consumption, pressure and medium temperature
  • Versions for wet gas applications
  • Compact and remote electronic versions
  • Inline and insertion versions are available
  • Analogue, pulse, RS485 Modbus RTU, M-bus and relay outputs
  • Burkert Mass Flow Controllers (MFC) and Mass Flow Meters (MFM) for gases

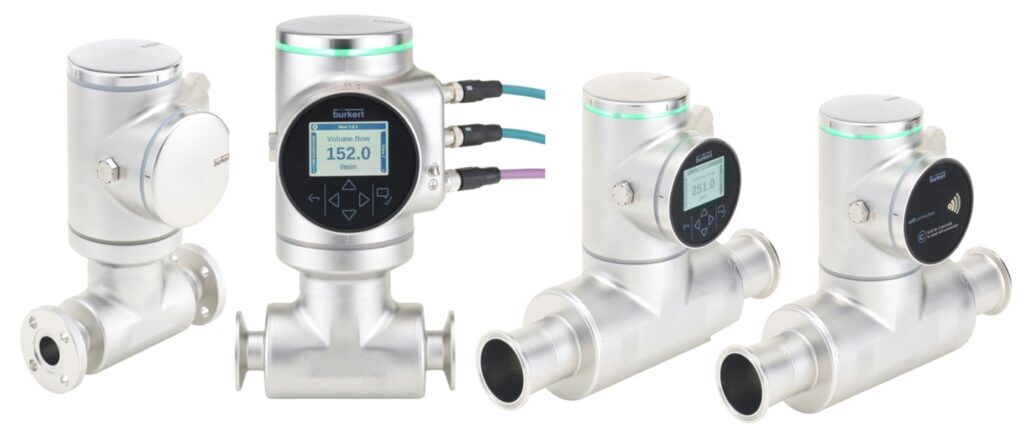

SURFACE ACOUSTIC WAVE (SAW) FLOWMETERS

  • FLOWave SAW flowmeter
  • Type 8098
  • No obstacles inside the measuring tube, compact, lightweight and low energy consumption
  • Conforms to hygienic requirements, CIP/SIP compatible
  • Ideal for liquids with low or no conductivity
  • Digital communication, parameterization via Communicator, display and Wi-Fi
  • Optional: ATEX certification, II 3G/D

MECHATRONIC FLOWMETERS

  • Optimized for water, glycol solutions, industrial oils or coolants
  • Integrated temperature measurement
  • Integrated with reliable back flow prevention
  • Installation without additional inlet or output pipe lengths
  • Red/green color change for process values
  • Very short response time

POSITIVE DISPLACEMENT (MECHANICAL) FLOWMETERS

  • Gas Meters
  • Water Meters
  • Oil Meters
  • Process Meters (Stream Unipulse Meters)
  • Batching and Totalizing Meters

DISPLAYS, RECORDERS, CONTROLLERS AND COMPUTATION UNITS FOR FLOW METERING APPLICATIONS

  • Evaluation units for flow monitoring
  • Flow indicators, displays and alarm units
  • Data loggers and recorders with flowmeter functions
  • Batch, dosing, filling and loading/unloading controllers
  • Flow and energy computers
  • Multifunction controllers with flowmeter functions
  • Options for panel mounting, field and remote mounting
  • Flow consumption monitoring system
  • Energy management system
